ARALAB BIO
PLANT GROWTH & RESEARCH CHAMBERS

Environmental chambers and Controlled Environment rooms developed for biotechnology, bioindustry and research in many life science applications.

  • Plant Growth
  • Tissue Culture
  • Arabidopsis Research
  • Insectaries and Drosophila
  • Seed storage and Germination
  • Medical plants and Cannabis industry
  • Indoor Vertical Farming
  • Controlled Environment Agriculture
  • Crop Sciences
  • Algae and Marine Sciences
  • Other Life Sciences Applications
Previous slide
Next slide

CONTROL THE ENVIRONMENT

ARALAB FITOCLIMA CHAMBERS

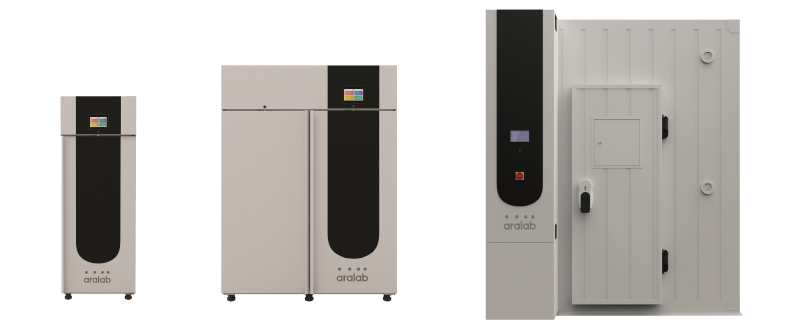

From 600 liters ‘reach-in’ cabinets to ‘walk-in’ growth rooms, Aralab FitoClima environmental chambers are the ideal climate simulation equipment for plant growth and research.

With precise control of Temperature, Humidity, Air Flow and Light intensity (other environmental variables such as CO2 control can be added), Aralab controlled environment chambers have flexible configurations and lighting options that make them suitable for growing small plants (or tissue culture), medium plants, or even tall plants that require high light intensities (>1.000µmoles/m²/s).

Arabidopsis FitoClima 1200 growth chamber
Plant research chamber 1200 Heliospectra Dyna
Micro algae in-vitro
Rice growth FitoClima PLH white LED Max Planck
FitoClima 600 Tissue Culture
FitoClima 600 plant research cabinet
FitoClima 1200 Plus HP Valoya Solray
Previous slide
Next slide

FITOCLIMA 600 & 1200 BIO

Small footprint ‘reach-in’ chambers with wide climatic ranges and precise control of all environmental variables, allowing accurate and reproducible conditions for many years.

Flexible configurations and multiple options will allow for almost all requirements of  plant growth, tissue culture (in-vitro propagation), algae growth, seed storage or germination.

Temperature range:
 -5°C to +45°C
(Extended temperature ranges available)

Humidity range:
40% to 95%
(Extended humidity ranges available)

Light Intensities:
up to 300, 600 or >1.000 µmoles/m²/s
(Multiple lighting options available with different intensities and with fixed or adjustable spectra)

FITOCLIMA 600
External Dimensions (HxWxD) (mm) 1.980 x 745 x 950
Internal Dimensions (HxWxD) (mm) 1.330 x 600 x 680

FITOCLIMA 1.200
External Dimensions (HxWxD) (mm) 1.980 x 1.450 x 810
Internal Dimensions (HxWxD) (mm) 1.330 x 1.320 x 680

Chambers can be fitted with 1 to 4 tiers of shelves (light intensity dependent), with independent light control.

FITOCLIMA ‘WALK-IN’ BIO

Modular rooms, with volumes starting at 5m3 (2,5m2 area), offering unsurpassed accuracy and reproducibility of Temperature, Humidity, Air Flow, CO2, Light Intensity or Irrigation.

Multiple internal design configurations allow Aralab walk-in chambers to accommodate almost any application for research or plant growth

Temperature range:
 -5°C to +45°C
(Extended temperature ranges available)

Humidity range:
40% to 90%
(Extended humidity ranges available)

Light Intensities:
up to 250, 500 or >1.000 µmoles/m²/s
(Multiple lighting options available with different intensities and with fixed or adjustable spectra)

PL/PLH models: Multi-Tier chambers with a central corridor and light controlled shelves on both sides

HP models: Single-Tier chambers with lights located at the ceiling, offering high light intensity, usually for tall plants

Indoor Vertical Farming Plant Factory for Controlled Environment Agriculture
Tissue Culture FitoClima walk-in Room
FitoClima Tomato Growth LED
FitoClima HP single-tier room
Insect Rearing Room interior
LED Multi-tier growth room
Rice Growth Chamber
Tissue culture
Previous slide
Next slide

ACCESSORIES

  • CO2 control
  • CO2 scrubber
  • Quantum Light meter
  • HEPA filtration
  • Positive / Negative Pressure
  • Negative temperature ranges
  • FitoLog Software pack
  • Drying chambers
  • Vertical LED chamber
  • Energy e-Meter
  • Biometric chamber access
  • Water treatment accessories
  • Dewing and Mist simulation
  • Automatic irritation
  • Ebb and flow trays
  • Hydroponic Irrigation system
  • Aeration for algae and aquatic cultures
  • LEDs with multiple spectra options
  • CO2 control
  • CO2 scrubber
  • Quantum Light meter
  • HEPA filtration
  • Positive / Negative Pressure
  • Negative temperature ranges
  • FitoLog Software pack
  • Drying chambers
  • Vertical LED chamber
  • Energy e-Meter
  • Biometric chamber access
  • Water treatment accessories
  • Dewing and Mist simulation
  • Automatic irritation
  • Ebb and flow trays
  • Hydroponic Irrigation system
  • Aeration for algae and aquatic cultures
  • LEDs with multiple spectra options
  • CO2 control
  • CO2 scrubber
  • Quantum Light meter
  • HEPA filtration
  • Positive / Negative Pressure
  • Negative temperature ranges
  • FitoLog Software pack
  • Drying chambers
  • Vertical LED chamber
  • Energy e-Meter
  • Biometric chamber access
  • Water treatment accessories
  • Dewing and Mist simulation
  • Automatic irritation
  • Ebb and flow trays
  • Hydroponic Irrigation system
  • Aeration for algae and aquatic cultures
  • LEDs with multiple spectral options
